Ipc Mini-Itx Nc97r Intel H57 1156pin

i3, i5 ve i7 Destekli (1156Pin)..

8gb DDR3 Ram destekli

PCI Express 16X Slotu..

HDMI-VGA-DVI Çıkışı ..

IPC Mini-ITX NC97R Intel H57 1156Pin

CPU INTEL ® LGA 1156 Socket CPU

ChipsetINTEL® H57 Chipset

Front Side Bus 1333MHz

Memory 2 * DDR3 1333 SDRAM up to 8 GB

Expansion Slots 1 * PCI-E X16 slot

Storage 5 * Serial ATA2 3Gb/s connectors

NC97R-LF (Intel H57 Chipset) support RAID 0, 1, 5, 10

AudioRealtek ALC662 6-Channel HD Audio CODEC

Ethernet LAN RTL8111DL Gigabit LAN

USB Embedded 10 * USB 2.0/1.1

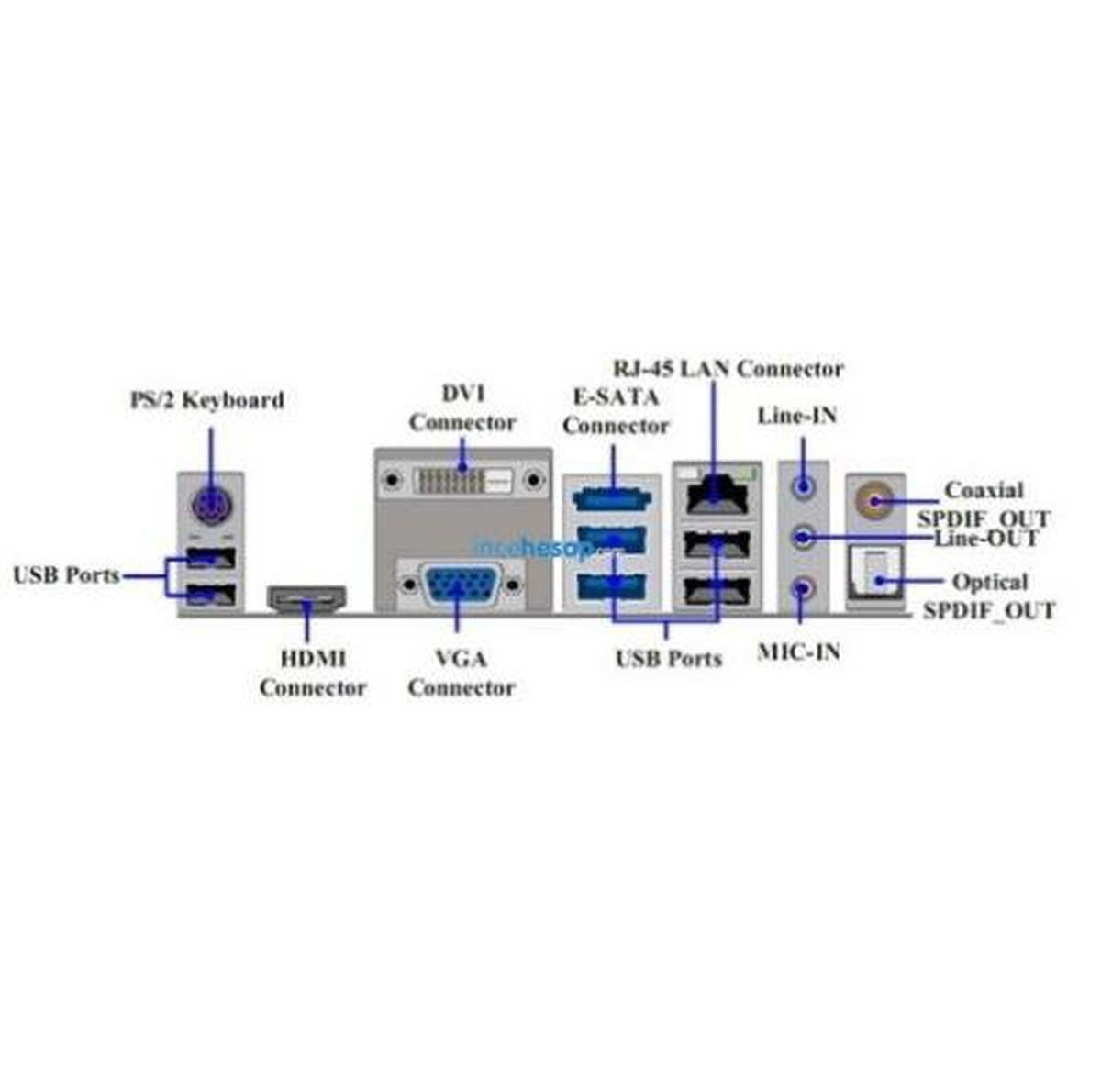

Rear Panel I/ O

6 * USB 2.0/1.1 ports , 1 * PS/2 KB/MS Connector , ,1 * Optical Out

1 * RJ-45 port , 3 * Audio I/O ports ( Line-in, mic and line-out )

1 * VGA port,1 * DVI Port,1 * HDMI Port

1 * Coaxial Out1 * E-SATA Connector

Internal I/ O

2 USB headers for USB 2.0 Connectors , NB/ Chassis Fan connectors;

1 * 24-pin ATX Power connector , 1 * GPIO, 1 * COM Port , 1 * Audio header

Boyutlar Dimension:200(W) x 200(D) x 70(H)mm

CertificateCE, FCC, RoHS

Form Factor Mini ITX Form Factor(17cmx17cm)
