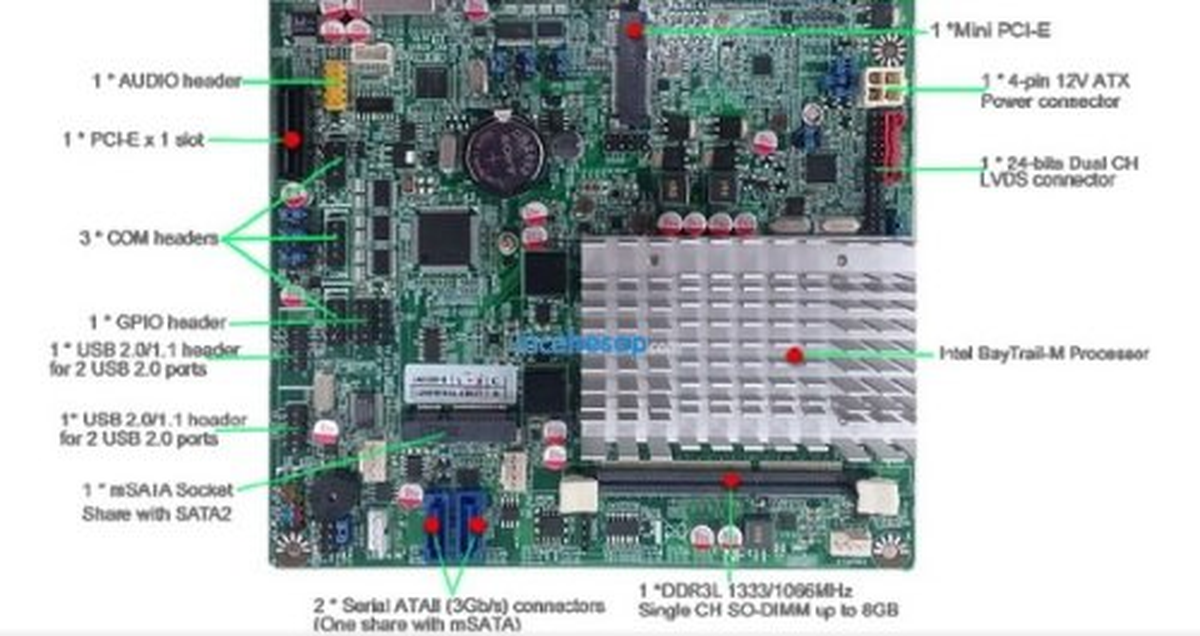

| IPC Mini-ITX NF9T-2807-LF Anakart | |
| CPU | INTEL® Celeron D2807 CPU (1.58GHz, 1Mb Cache) ( Çift çekirdekli ) |
| Memory | 1 * 240 pin 1333/1066 DDR3 Ram (so-dimm) Maksimum : 8 GB destekler.. |
| Expansion Slots | 1 * PCIe x 1 1 * Mini PCI-E socket 1 * mSata Slot |
| Storage | 2 * Serial ATA2 3Gb/s connectors |
| Audio | Mevcut |
| Ethernet LAN | 1 adet - Gigabit LAN ( Intel 82583V ) |
| USB | 4 (1 x USB 3.0, 3 x USB 2.0) |
| LVDS | Dual Channel 24-bit, max resolution 1920x1200@60Hz |
| Rear Panel I/ O | 1 * VGA 1 * HDMI 1 * RJ45 USB : 4 (1 x USB 3.0, 3 x USB 2.0) AUDIO : 2 (Mic-in, Line-out) 1 * PARALEL 2 * SERI PORT (1 tanesi rs232 , 1 tanesi 232/422/485 isteğe bağlı ) 1 * PS/2 ( klv/ mouse ) 1 * +12V DC-in jack |
| Internal I/ O | USB : 5 (4 x USB 2.0 via 2 x10pin header, 1 x USB2.0 via 5pin header) LVDS inverter : 1/1 Serial : 3 (3 x RS-232 with 5V/12V selectable header) SATA : 2 x SATAII (3.0Gb/s) mPCIe : 1 mSATA : 1 GPIO 8-bit : Programable Audio Header : 1 |
| Form Factor | Mini-ITX Form Factor (170mm x 170mm) |
| Certificate | CE, FCC, RoHS, REACH |
| Temperature | Operating within 0~60 centigrade Storage within -20-85 centigrade |
