Ipc Mini-Itx Nc9n-2550 Anakart

Ürün Özellikleri

Onboard Convertör mevcut..

Çift Ethernet

Çift Seri..

IPC Mini-ITX NC9N-2550 Anakart

CPU INTEL® Cedar Trail-D Processor D2550 CPU (1.86GHz)

Chipset INTEL®NM10 Express chipset

Memory2 * 240 pin 1333/1066 DDR3 Ram (so-dimm)

Maksimum : 4 GB destekler..

Expansion Slots1 * PCIe x 16 , 1 * Mini PCI-E socket

Storage 2 * Serial ATA2 3Gb/s connectors

AudioRealtek ALC662 6-Channel HD Audio

Ethernet2 * RTL8111EVL PCI-E Gigabit LAN

USB Embedded 7 * USB 2.0/1.1

LVDSOnboard 24-bits single channel connector

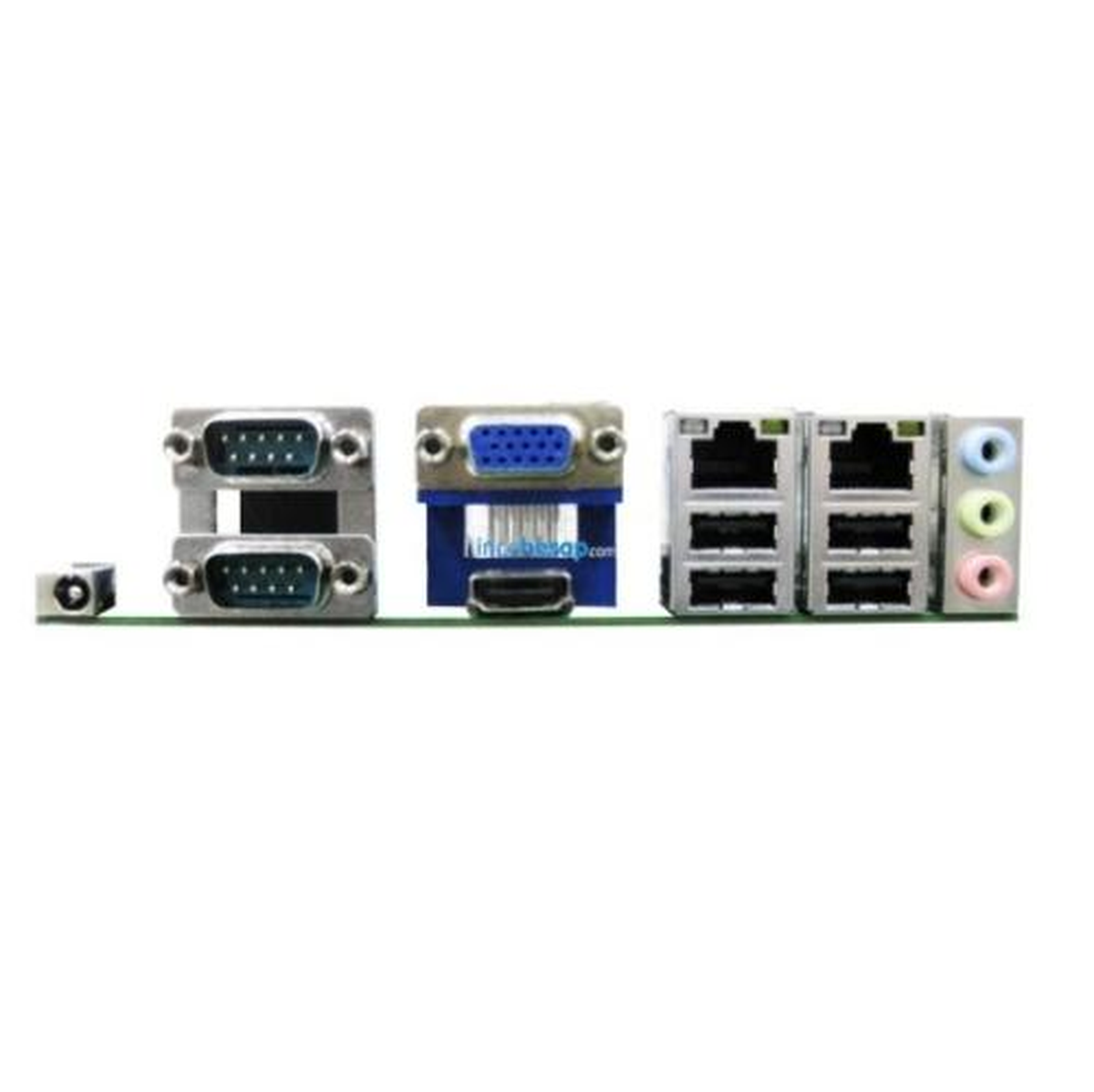

Rear Panel I/ O

4 * USB 2.0/1.1 ports

2 * RJ-45 port

3 * Audio I/O ports ( Line-in, MIC and Line-out )

1 * VGA port

1 * HDMI port

2 * COM ports (COM2 for RS232/422/485)

1 * +12V DC-in jack

Internal I/ O

2 * USB 2.0/1.1 headers for 3 USB 2.0 ports

1 * PS/2 Mouse & 1 * Keyboard header

2 * NB/ Chassis Fan connectors;

1 * LVDS header/1 * Inverter header

1 * AUDIO header

4* RS232 headers

BIOS AMI 16MB UEFI DIP Flash ROM

Form Factor Mini-ITX Form Factor (170mm x 170mm)

CertificateCE, FCC, RoHS

Temperature

Operating within 0~60 centigrade

Storage within -20-85 centigrade
