Ipc Mini-Itx Nf9d-2550 Anakart

Ürün Özellikleri

Daughter Kart Takılabilir..

Çift Ethernet

Çift Çekirdekli Cpu..

IPC Mini-ITX NF9D-2550 Anakart

CPU INTEL® Cedar Trail-D Processor D2550 CPU (1.86GHz)

Chipset INTEL®NM10 Express chipset

Memory2 * 240 pin 800/1067MHz DDR3 Ram (so-dimm)

Maksimum 4 GB destekler..

Exp.Slots 1 * PCIe x 161 * Mini PCI-E socket

Storage 2 * Serial ATAII 3Gb/s + 2 * Serial ATAIII 6Gb/s connectorss

AudioRealtek ALC662 HD Audio Code with 6-Channel

Ethernet 2 * Realtek RTL8111EVL PCI-E Gigabit Ethernet LAN

USB Embedded 7 * USB 2.0/1.1

LVDS Onboard 24-bits single channel connector

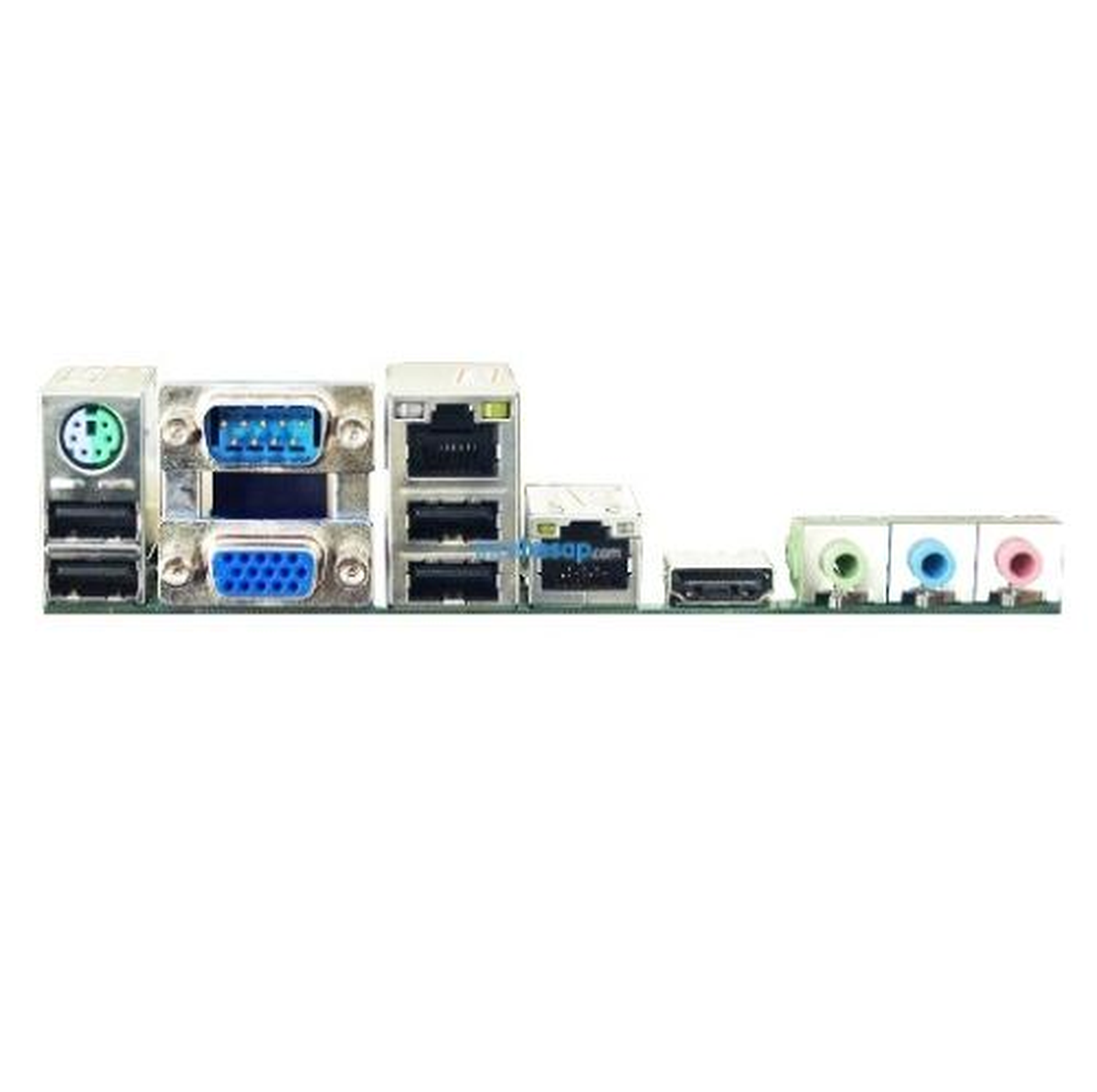

Rear PanelI/ O

4 * USB 2.0/1.1 ports

1 * PS/2 KB/MS connector

2 * RJ-45 port

1 * Audio port ( Line-in, MIC and Line-out )

1 * VGA port

1 * HDMI port

1 * COM port

Internal I/ O

2 * USB 2.0/1.1 headers for 3 USB 2.0 ports

CPU/ Chassis Fan connectors

1 * 24-pin ATX Power connector

1 * COM header (for RS-232/422/485)

1 * chassis intrusion header

1 * 2-pin SPDIF out header

1 * Parallel header

1 * GPIO header

BIOS

AMI 16MB DIP-SPI Flash ROM

Form Factor Mini-ITX Form Factor (170mm x 170mm)

Certificate CE, FCC, RoHS

Temperature

Operating within 0~60 centigrade

Storage within -20-85 centigrade
