Ipc Mini-Itx Nf9a-Q67 Anakart

Ürün Özellikleri

i3 - i5 - i7 cpular kullanılabilir..

Çift Ethernet

Watch DOG desteği

IPC Mini-ITX NF9A-Q67 Anakart

CPUINTEL® LGA 1155 Pin tabanlı i3/ i5/ i7 işlemciler takılabilir.. ( Üzerinde cpu yoktur )

Chipset INTEL® Q67 ChipsetClock 100MHz

Memory2 * 240 pin 1333/1066 Dual CH. DDR3 Ram

Maksimum16 GB

Expansion Slots1 *PCIe x 16

Storage 2 * Serial ATA3 6Gb/s & 4 * Serial ATA2 3Gb/s connectors support RAID 0, 1, 5, 10

AudioVIA VT1705 6-Channel HD Audio CODEC

Ethernet LAN Intel 82579LM & 82574L PCI-E Gigabit Ethernet LAN

USBEmbedded 10 * USB 2.0/1.1

LVDS Onboard 24-bit dual channel LVDS connector

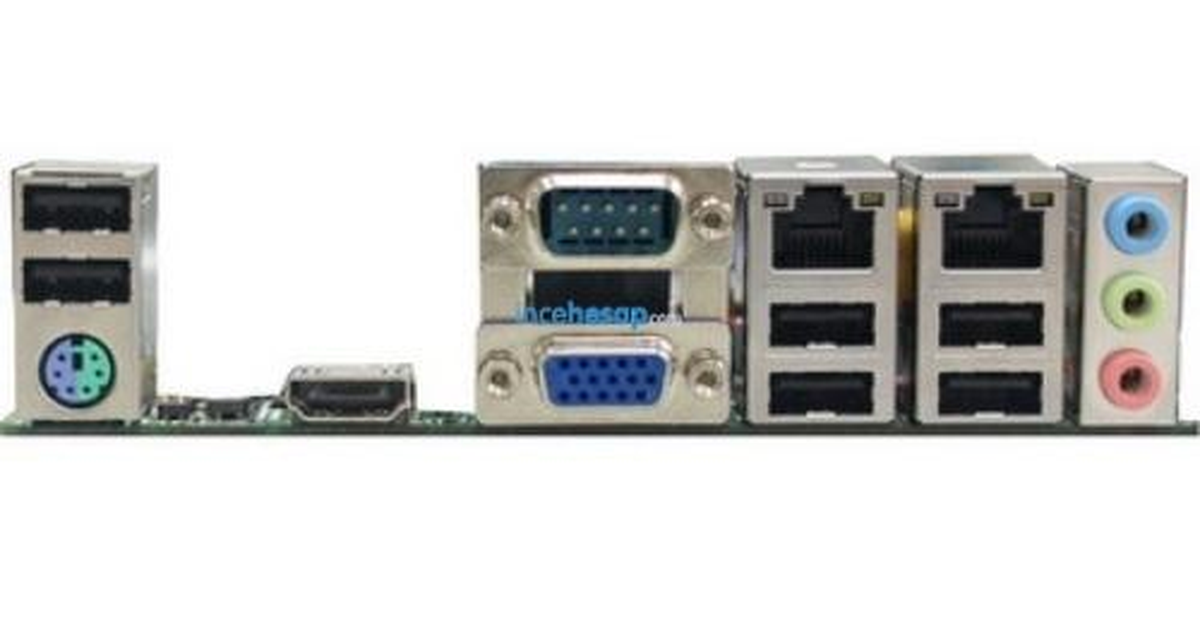

Rear Panel I/ O

6 * USB 2.0/1.1 ports

1 * PS2/KB Connector

2 * RJ-45 port

1 * HDMI port

1 * COM port

1 * VGA port

3 * Audio Phone Jack

Internal I/ O

2 * USB 2.0/1.1 headers for 4 USB 2.0 ports

CPU/NB/ Chassis Fan connectors

1 * GPIO header

1 * COM header(RS232/422/485)

1 * IR header

1 * Chassis Intrusion header

1 * AUDIO header

1 * 24-pin & 4-pin 12V ATX Power connector

BIOS

AMI EFI 64MB SMT Flash ROM

Form Factor

Mini-ITX Form Factor (170mm x 170mm)

Certificate

CE, FCC, RoHS

Temperature

Operating within 0~60 centigrade

Storage within -20-85 centigrade

IPC Mini-ITX NF9A-Q67 Anakart
